Geberit BIM Plug-in

Plug-in and Plan

Intelligent data and tools for digital planning

To support MEP design and planning, Geberit offers manufacturer-specific BIM content in addition to conventional CAD data and intelligent tools. The Geberit BIM content consist of parametric 3D models that contain article-specific meta information. This facilitates MEP design and planning with Geberit products in the Autodesk® Revit® planning software from early stages of design to facility management

Download the brochure "Plug-in and Plan"

New Geberit BIM plug-in from April 2021

The new version of the Geberit BIM plug-in combines all Geberit BIM tools in a central application. In addition to a newly designed user interface, the Geberit BIM plug-in also offers many new and helpful functions that simplify the planning process significantly.

New features

Catalogue: Access to up-to-date BIM objects

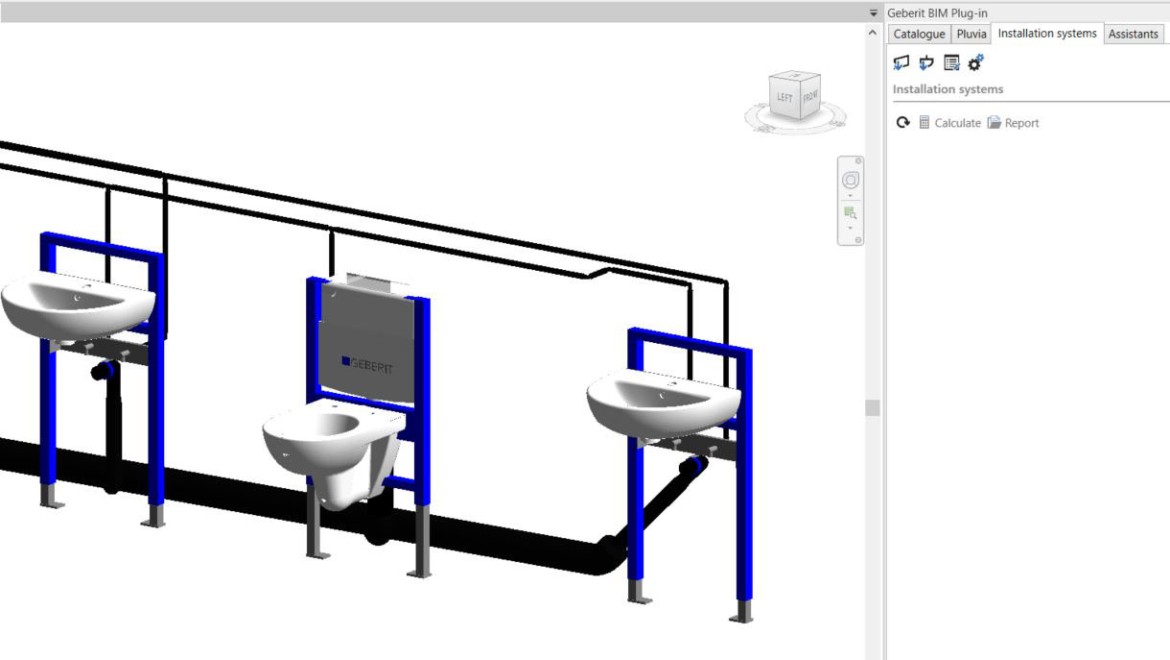

Installation systems: Geberit GIS prewall calculation directly in Autodesk® Revit®

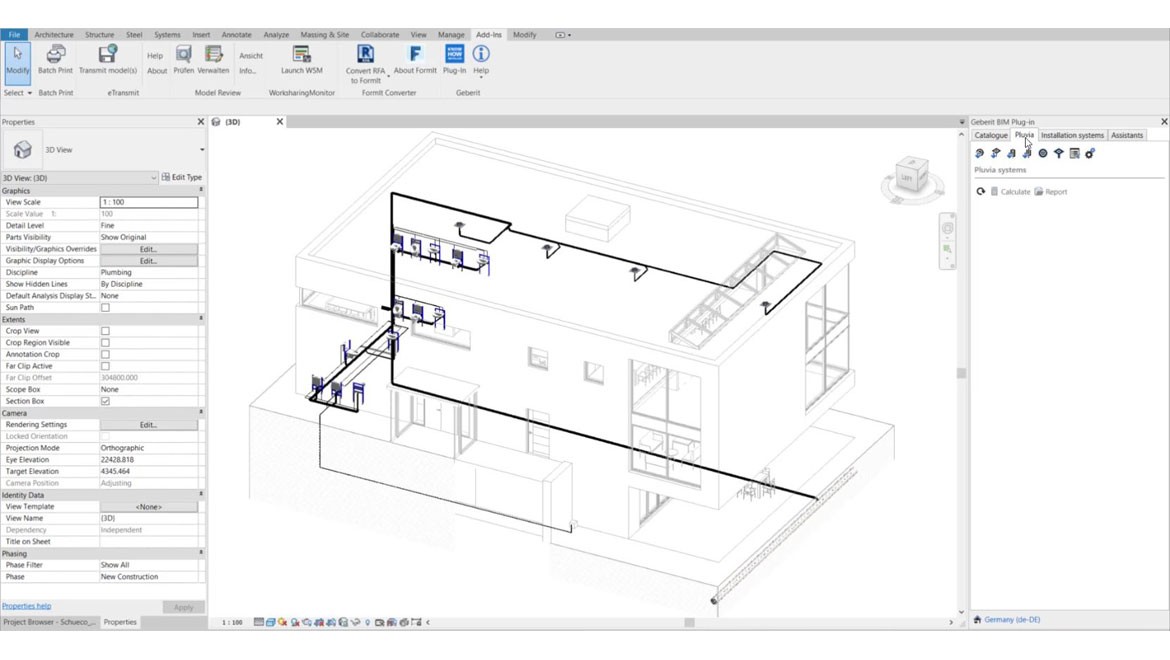

Geberit Pluvia: Calculation directly in Autodesk® Revit®
Search for products using the Geberit article number
Direct link to the Geberit online catalogue
Assistant:

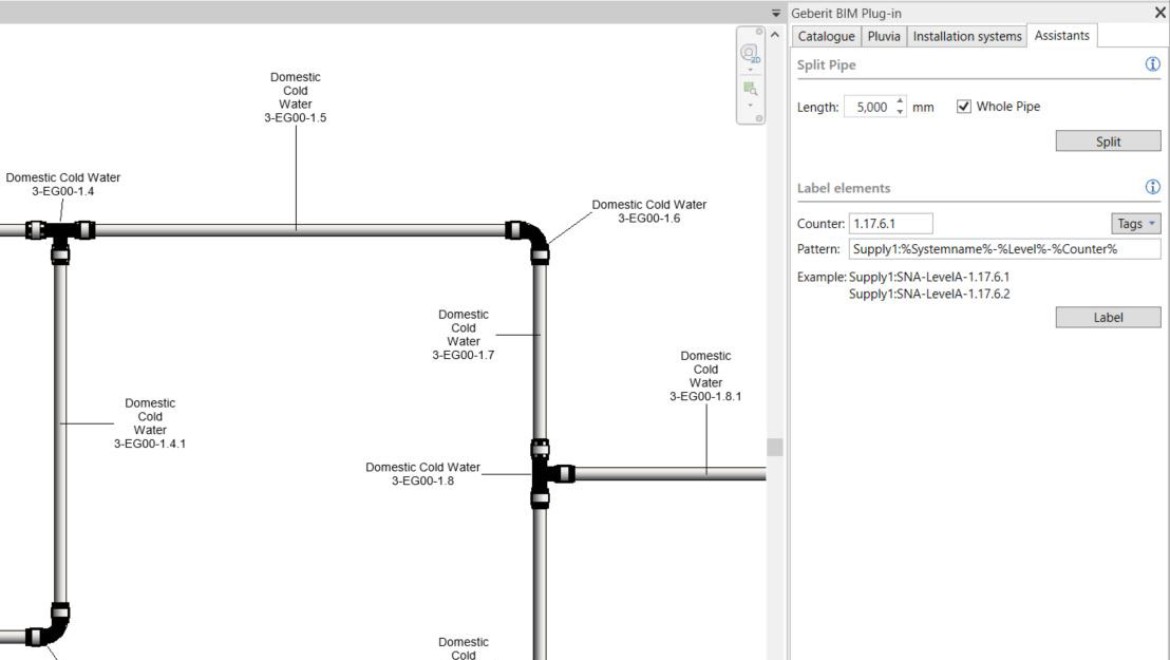

- Pipe numbering for prefabrication

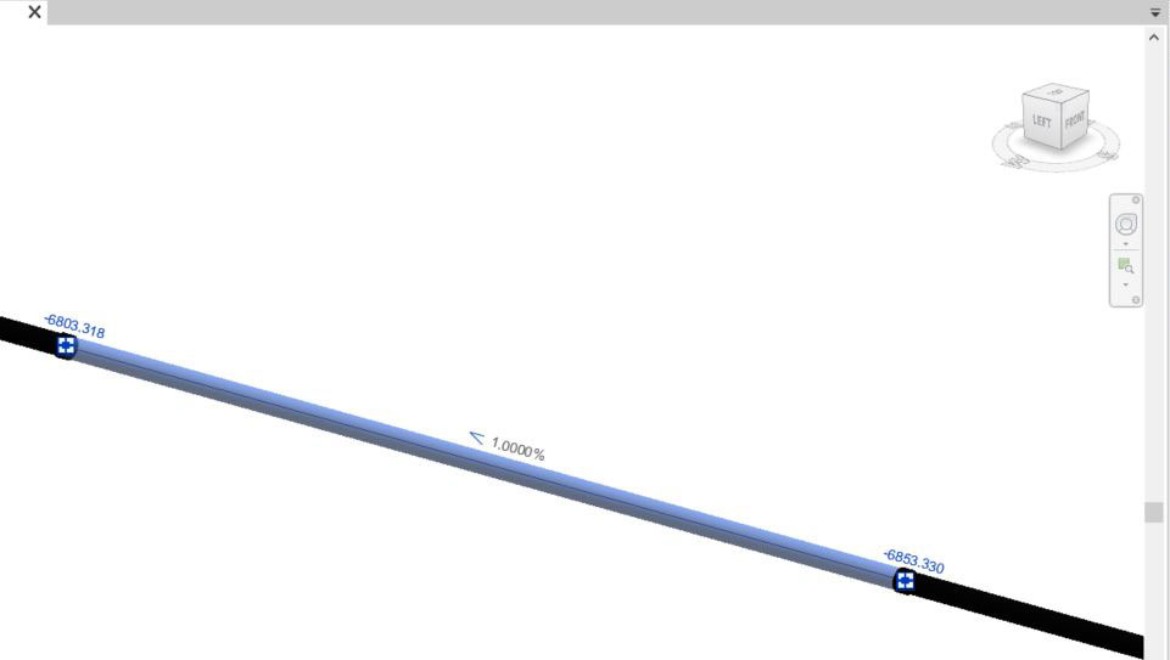

- Length segmentation command for pipe segmentation

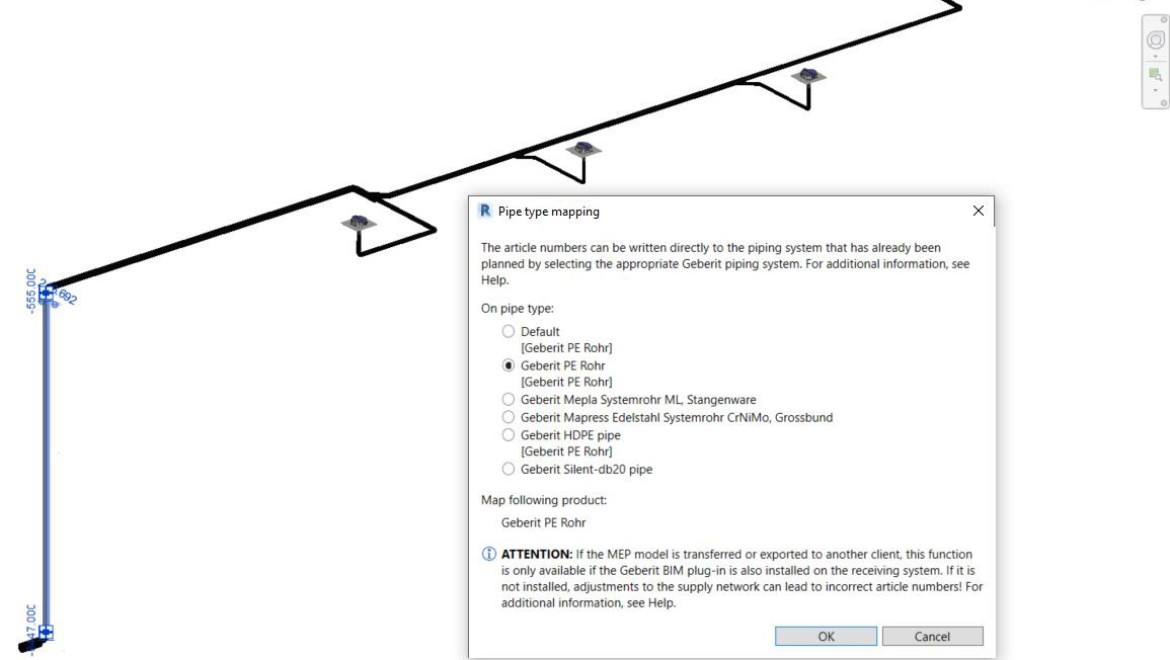

- Assigning article numbers to system pipes

The future happens every day – BIM NOW

Geberit BIM plug-in at a glance

Catalogue module

The Catalogue module gives you direct access to up-to-date content for all Geberit products, country and language specific.

Benefits at a glance:

Access up-to-date BIM objects for Geberit products at any time and from any location.
New: Now also available for Geberit GIS installation elements as well as Geberit ceramic appliances and bathroom furniture.
New: Find products faster by typing directly the Geberit article number.
New: Access more information about the product by linking directly to the Geberit online catalogue.
Autodesk® Revit® families at product level
Parametric models of a small file size that can be used efficiently. Ideal for larger projects where large files can negatively impact software and computer performance.
No need to translate standard English texts any more, as Geberit BIM objects are available in 25 national languages. Can be switched over to a generic at the touch of a button – important when dealing with tenders for public projects!
Available for the 2019, 2020 and 2021 versions of Autodesk® Revit®.

Pluvia module

Installation systems module

Assistants module

Planning without Geberit BIM Catalogue plug-in or in offline mode

Data availability

Download

Please fill in your details in order to receive further information or updates.

Salutation

First Name*

Last Name*

Company*

Email*

Profession*

Country*

I agree that Geberit South East Asia Private Limited may process my previously provided data beyond my contact for the purpose of market research, advertising and analysis and inform me by e-mail about current offers, services, news, promotions and tips from the sanitary products sector.

I may revoke this consent at any time - also in part - towards Geberit South East Asia Private Limited with effect for the future, in particular via the contact details stated in the imprint.

I am informed that my enquiry will be forwarded to the Geberit sales company operating in my country if my place of residence is not in the country of the Geberit company named in the imprint.

Links

Do you have questions about Geberit BIM?
Contact us

Conventional CAD-Data
2D and 3D CAD data can be downloaded from the product pages of the Geberit Online Catalogue.

Have an Autodesk account?
Download the free trial of the Geberit BIM plug-in on the Autodesk App Store.
