Tools and accessories

Fast work progress with electrohydraulics

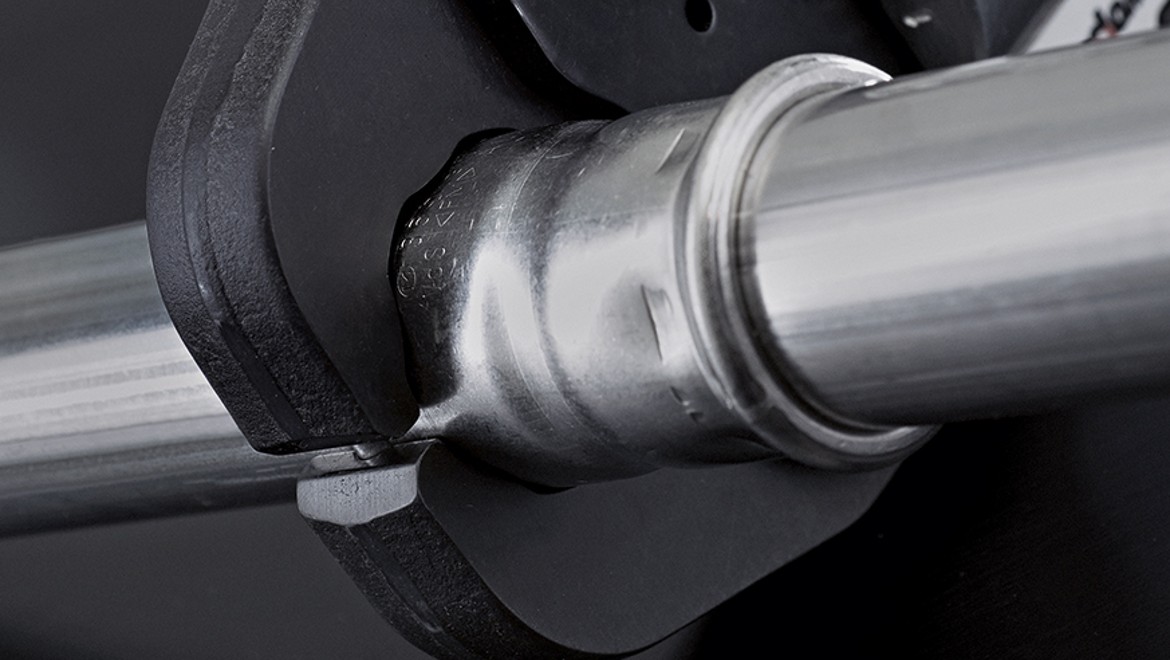

Approved pressing operations are created with the Geberit pressing jaws, pressing collars and adapter jaws. These tools are used as the basis for system approvals.

Geberit pressing tools

Geberit pressing jaws

Geberit pressing collars

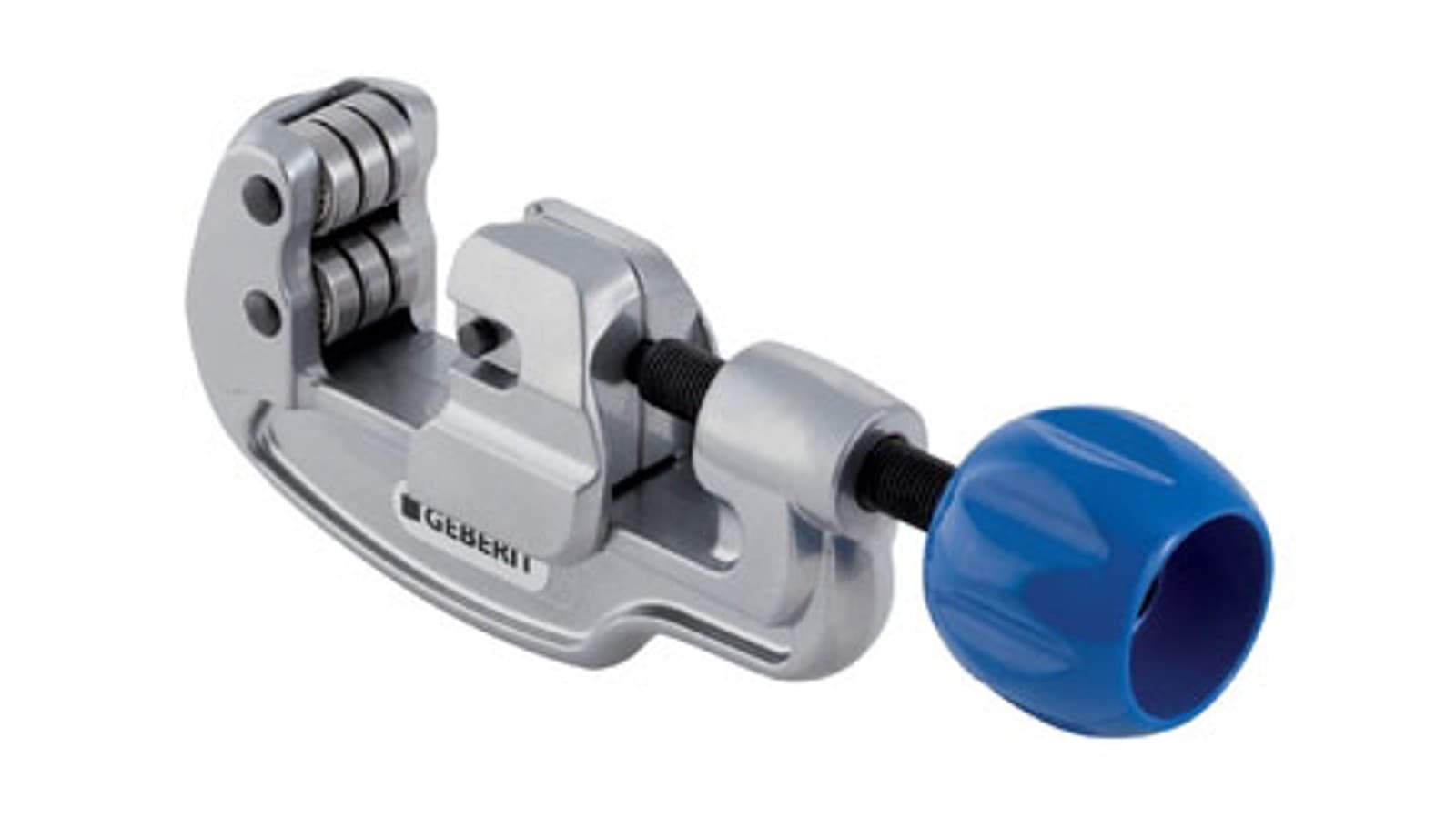

Additional tools

Geberit pressing tools

Compact and lightweight with high performance

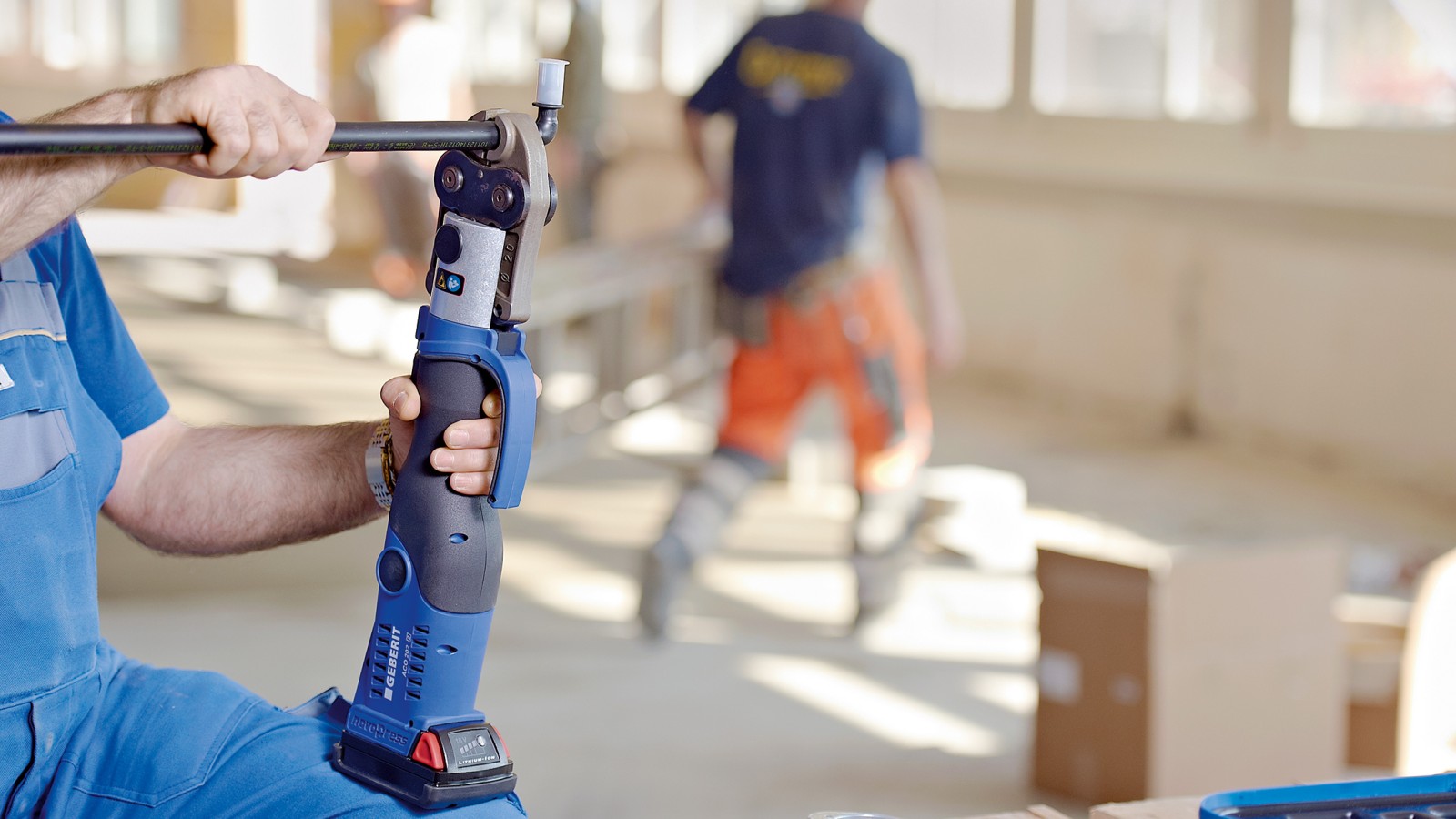

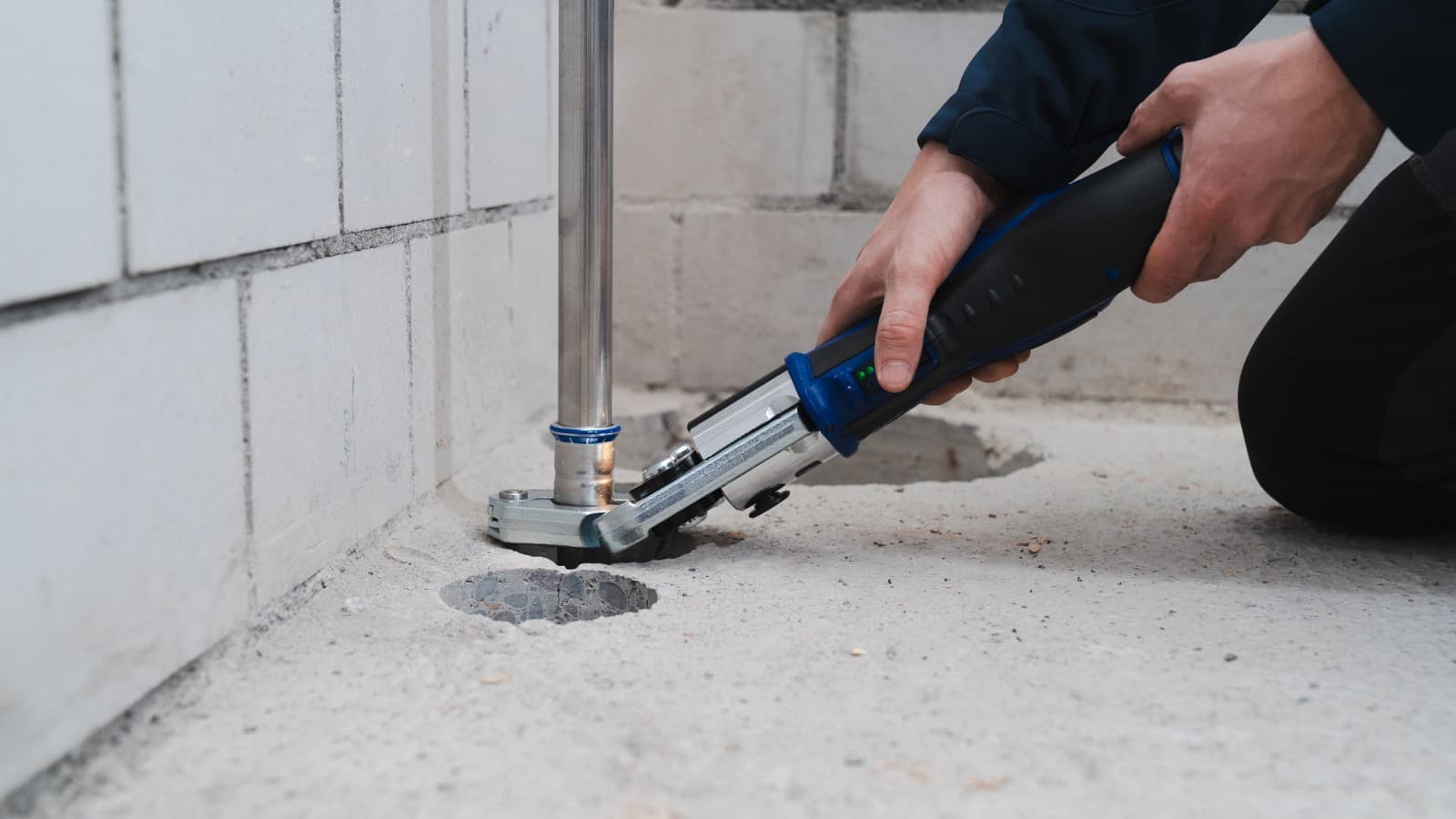

Also suitable for restricted construction situations

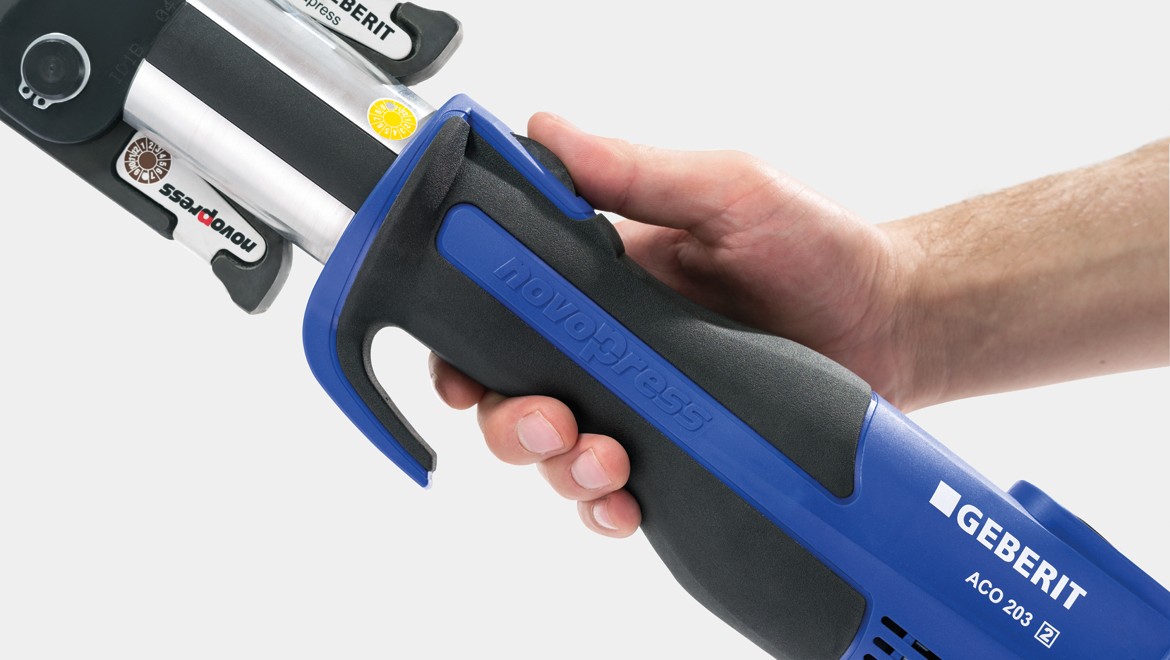

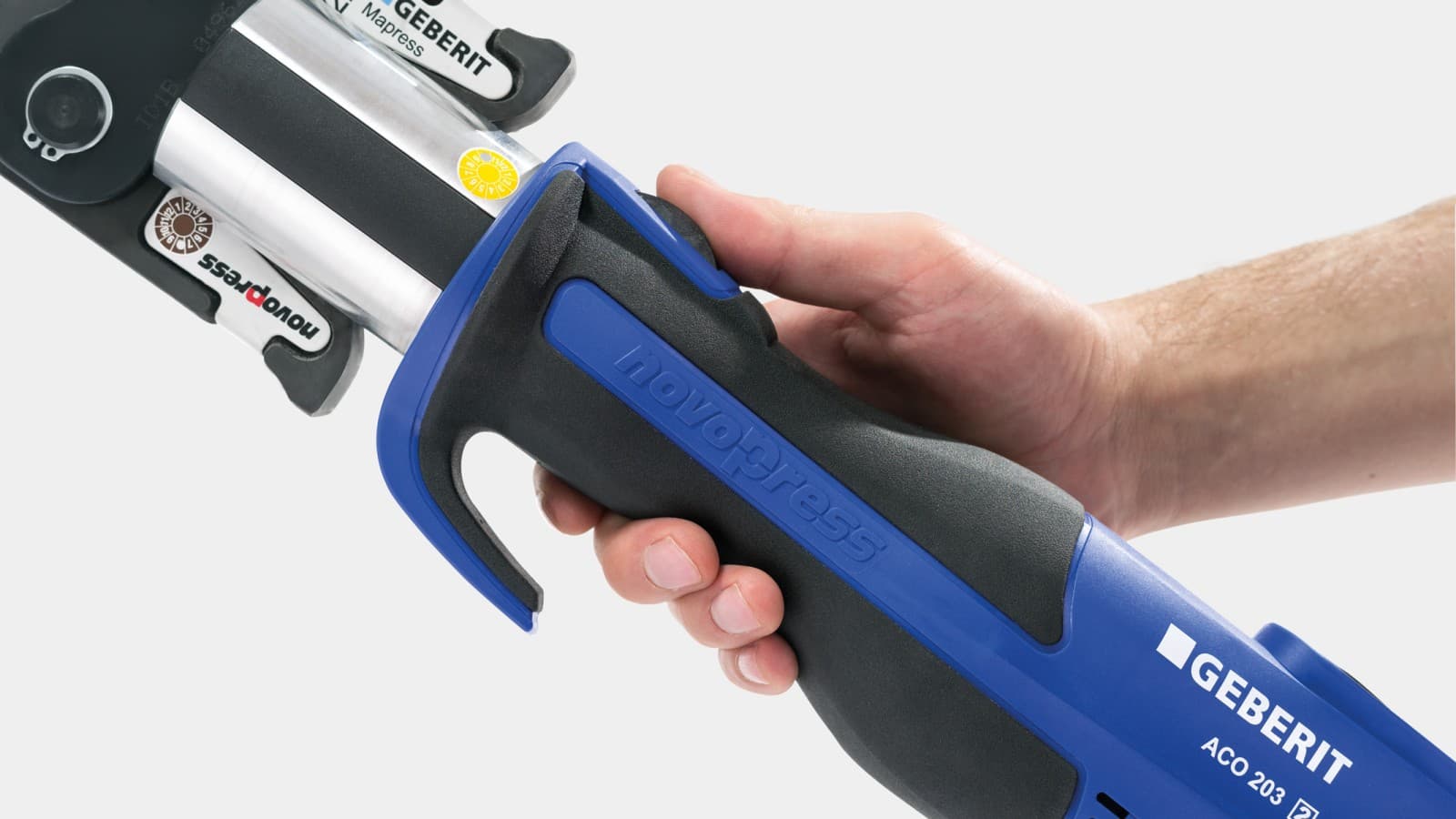

Slim, non-slip handle for reliable handling
Electrohydraulic drive

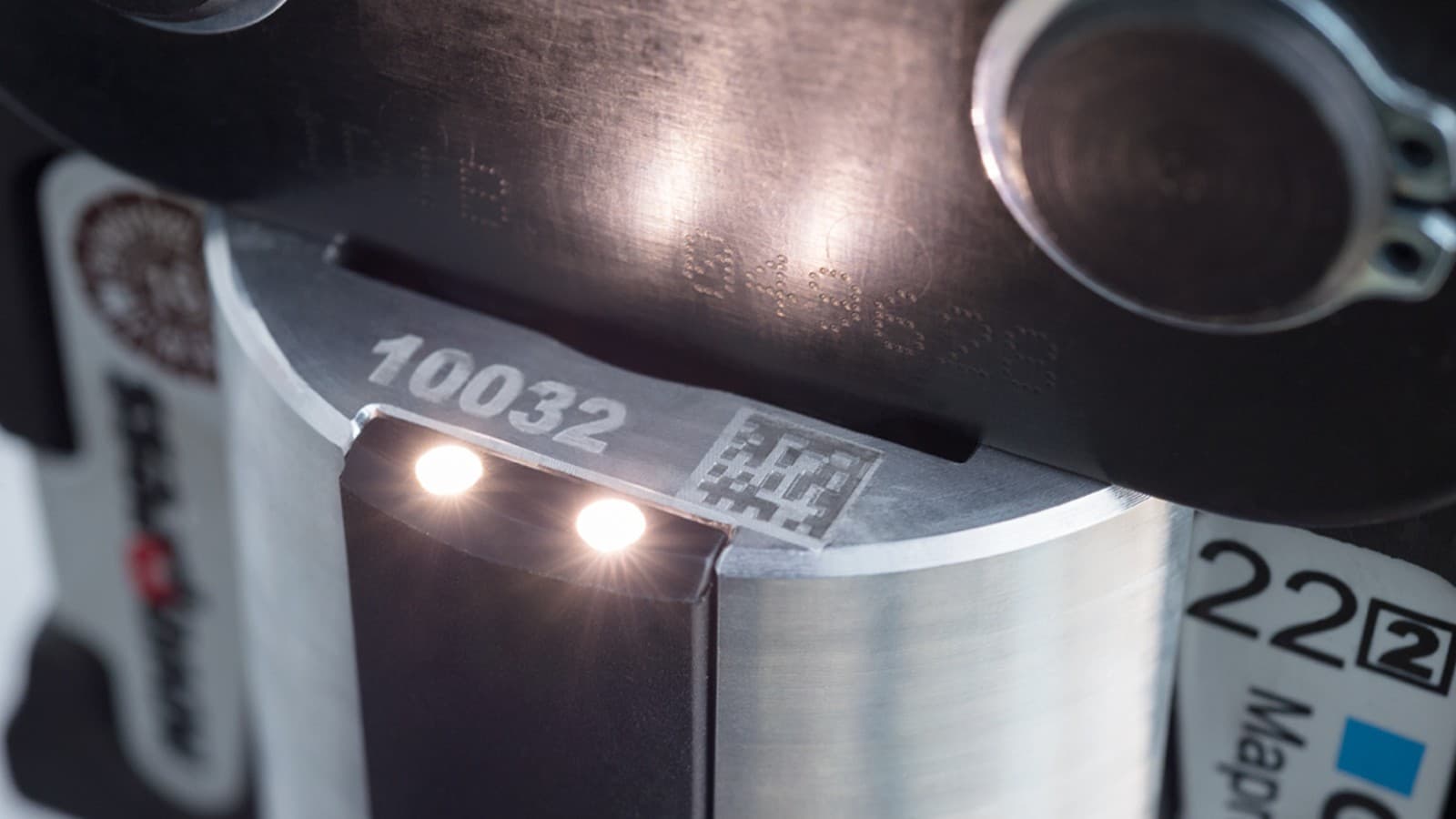

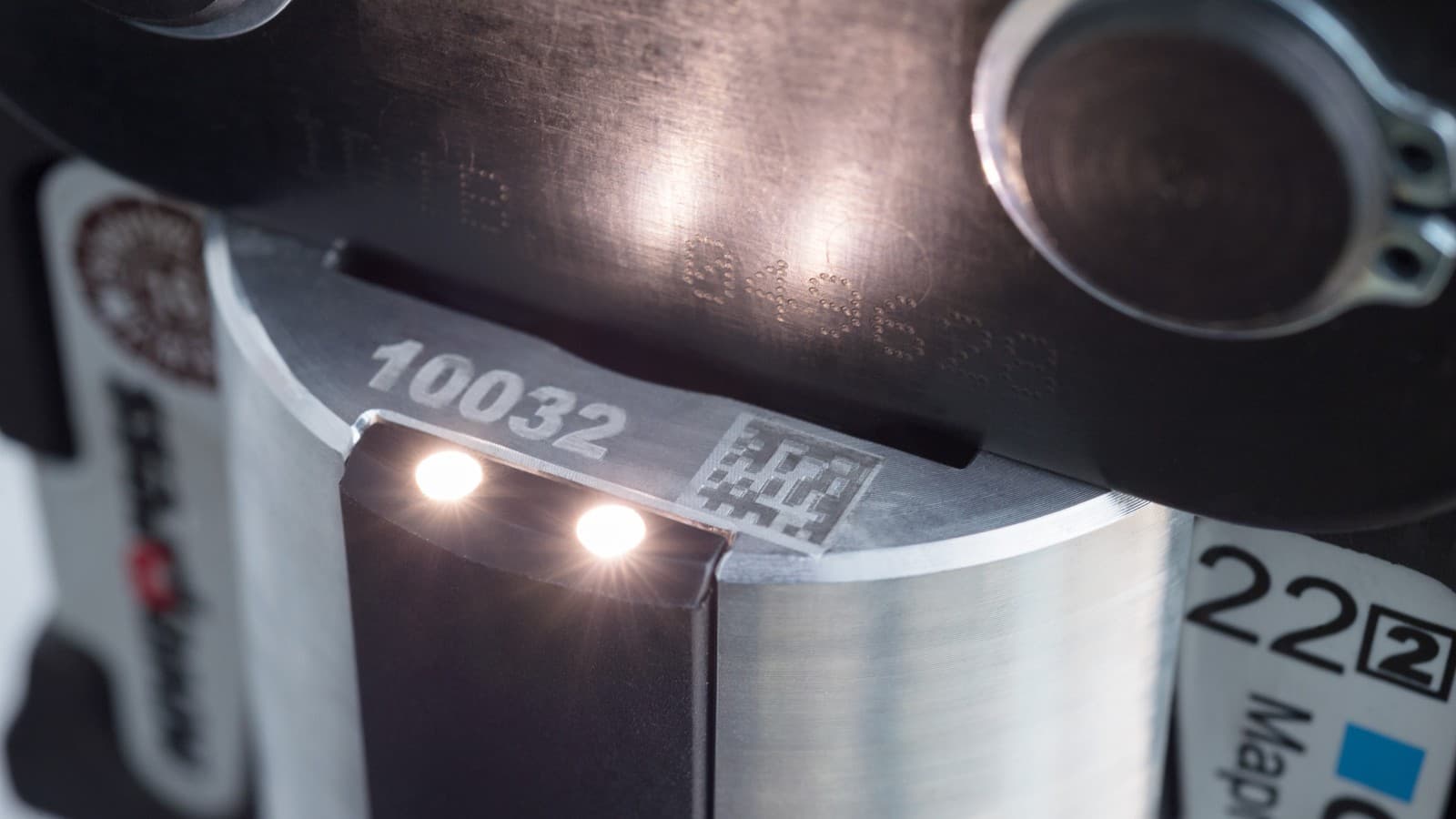

Good visibility in dark corners thanks to integrated LEDs (Geberit pressing tools ACO 203plus / ECO 203)
Easy maintenance thanks to the brushless motor (Geberit pressing tools ACO 203plus)

Overview of the Geberit pressing tools

Pressing tool				Geberit Mepla	Geberit Mapress
Geberit Mepla hand-operated pressing plier	-	H	<1.7 kg	16-26		Can be used without pressing jaws
ACO 103plus	[1]	A	1.7 kg	16-40	12-35	With Bluetooth® interface for the NovoCheck app

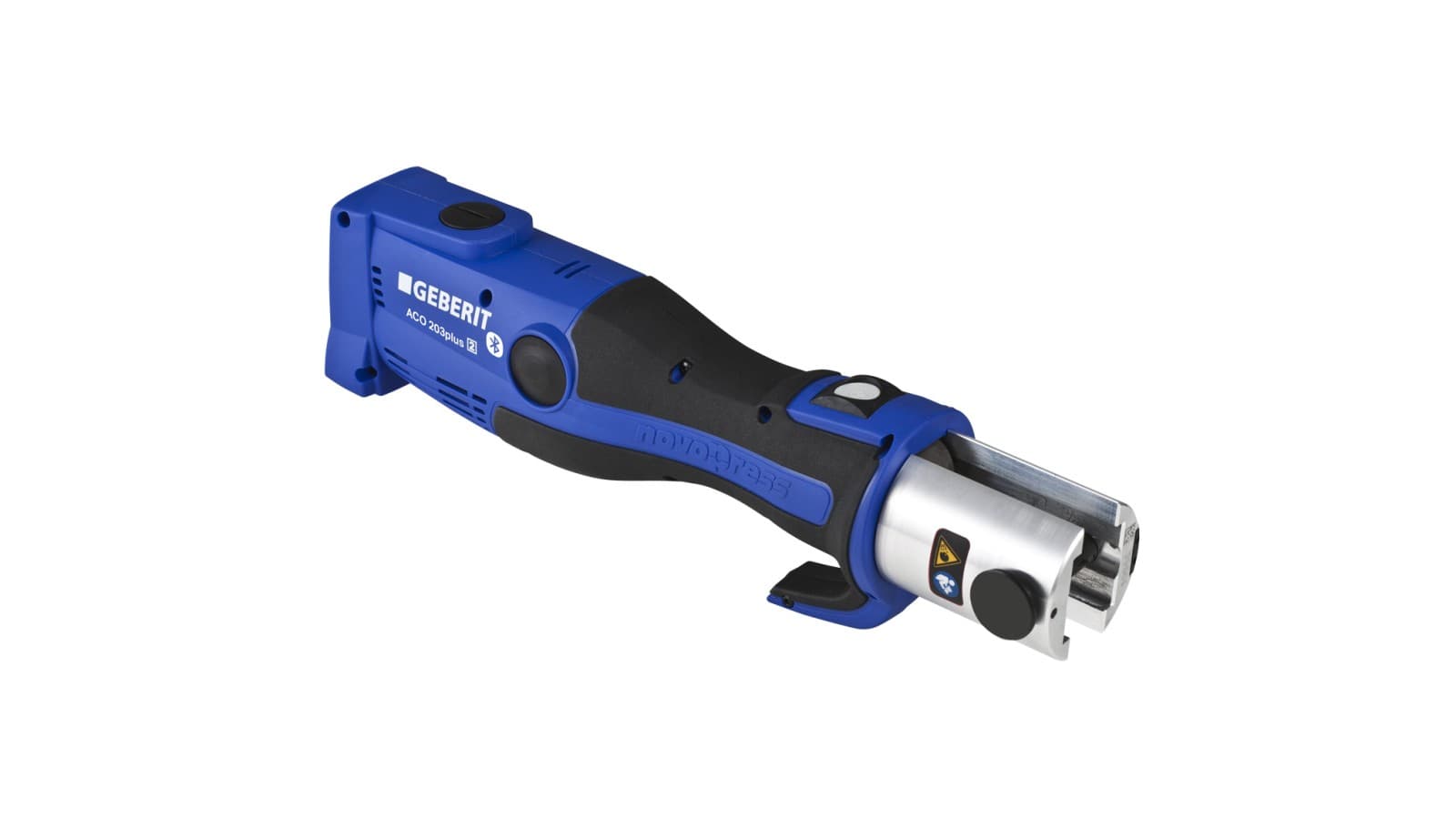

ACO 203plus	[2]	A	2.8 kg	16-75	12-66.7	LED pressing point light With Bluetooth® interface for the NovoCheck app

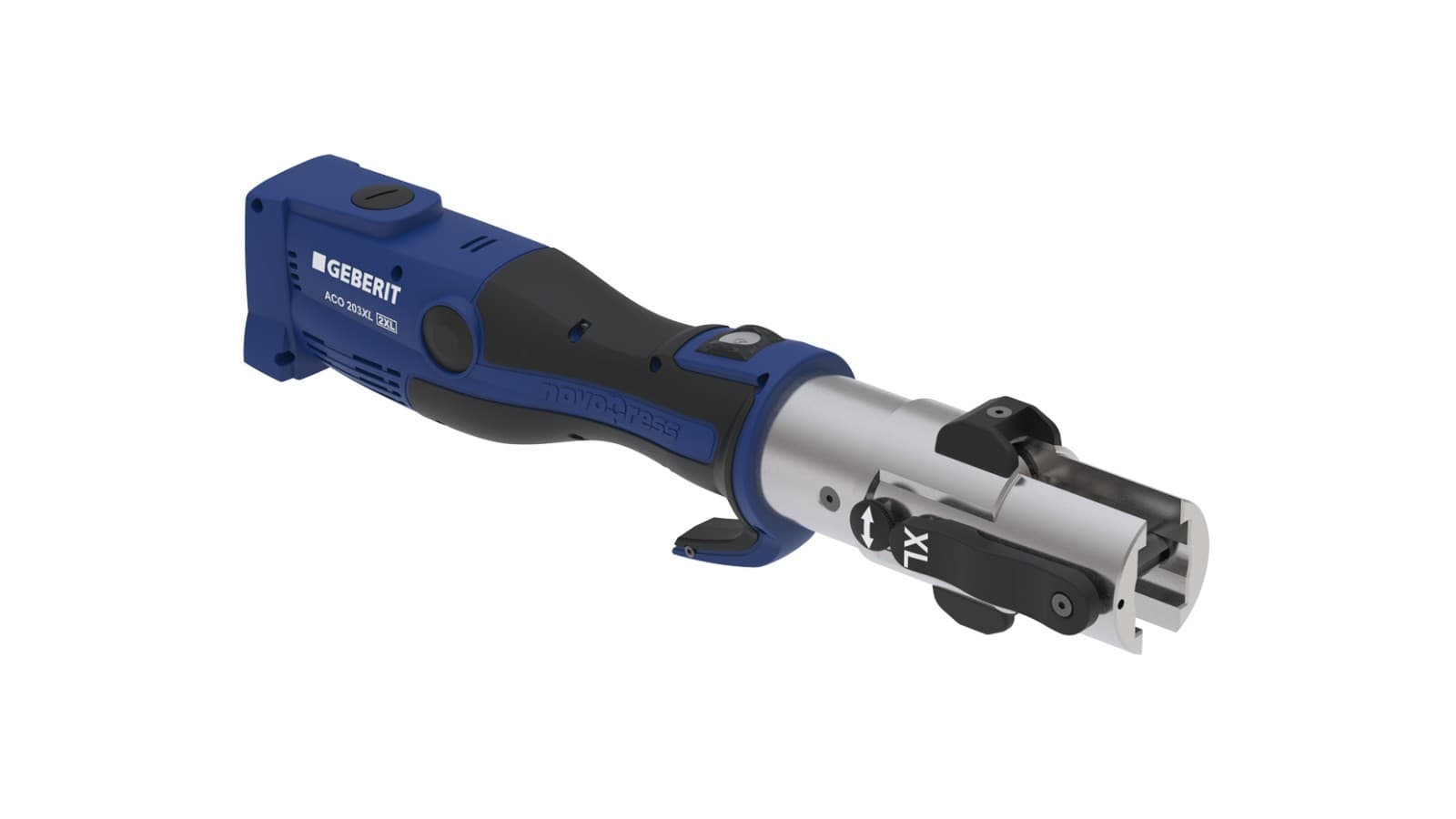

ACO 203 XLplus	[2XL]	A	3.8 kg	16-75	12-108	LED pressing point light With Bluetooth® interface for the NovoCheck app

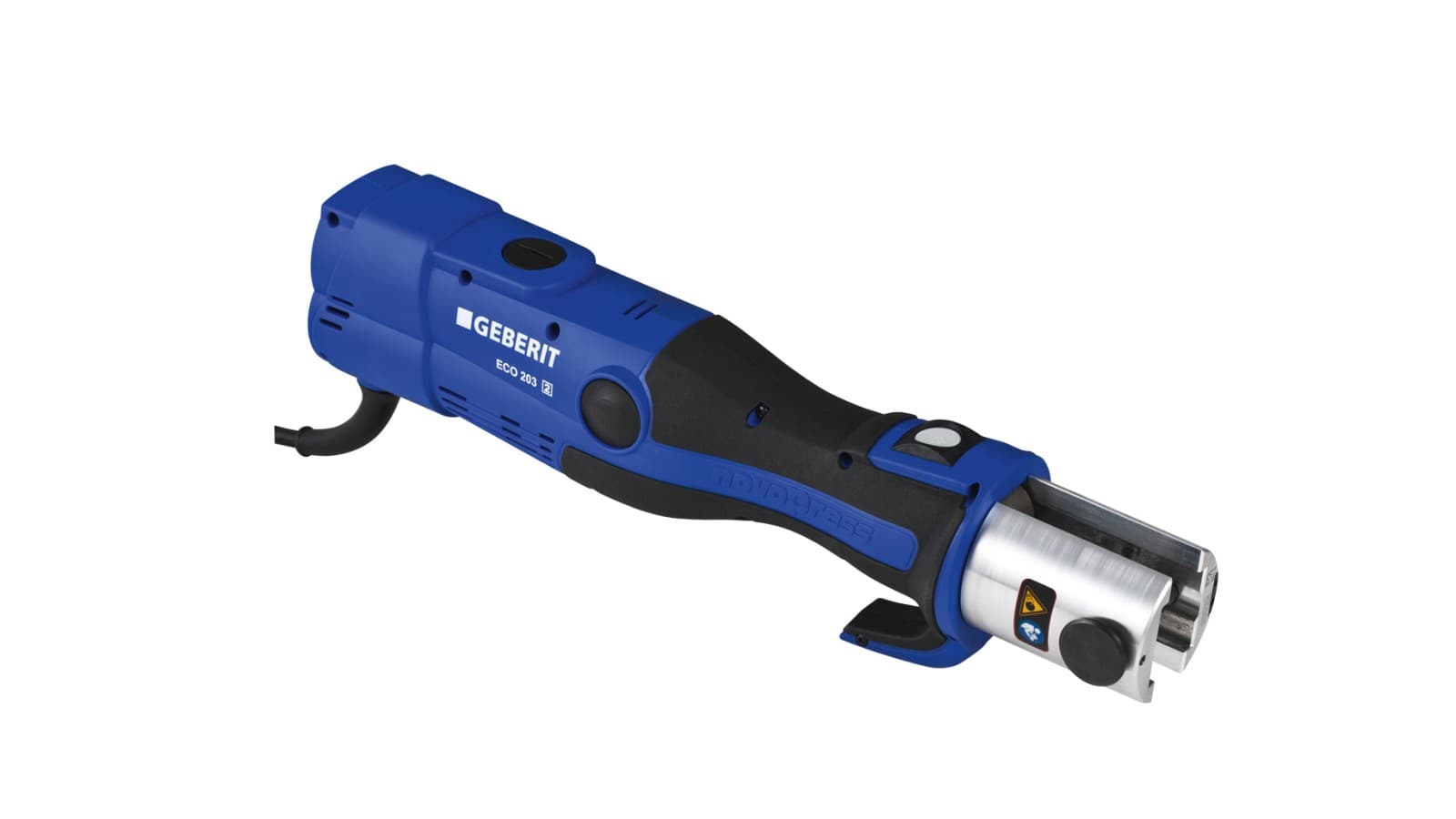

ECO 203	[2]	N	3.2 kg	16-75	12-66.7	LED pressing point light
MFP 2	[2]	H	4.5 kg	16-75	12-54
ECO 301	[3]	N	5.0 kg		12-108
HCPS*	[3]	N	14.2 kg		76.1-108	For VDS-compliant systems 108 without preliminary pressing

Legend:
H = handheld equipment; A = with rechargeable battery; N = with mains cable
x kg: Weight of the handheld equipment including rechargeable battery without pressing tool
* HCPS is delivered with its own pressing jaws which are not compatible with other devices

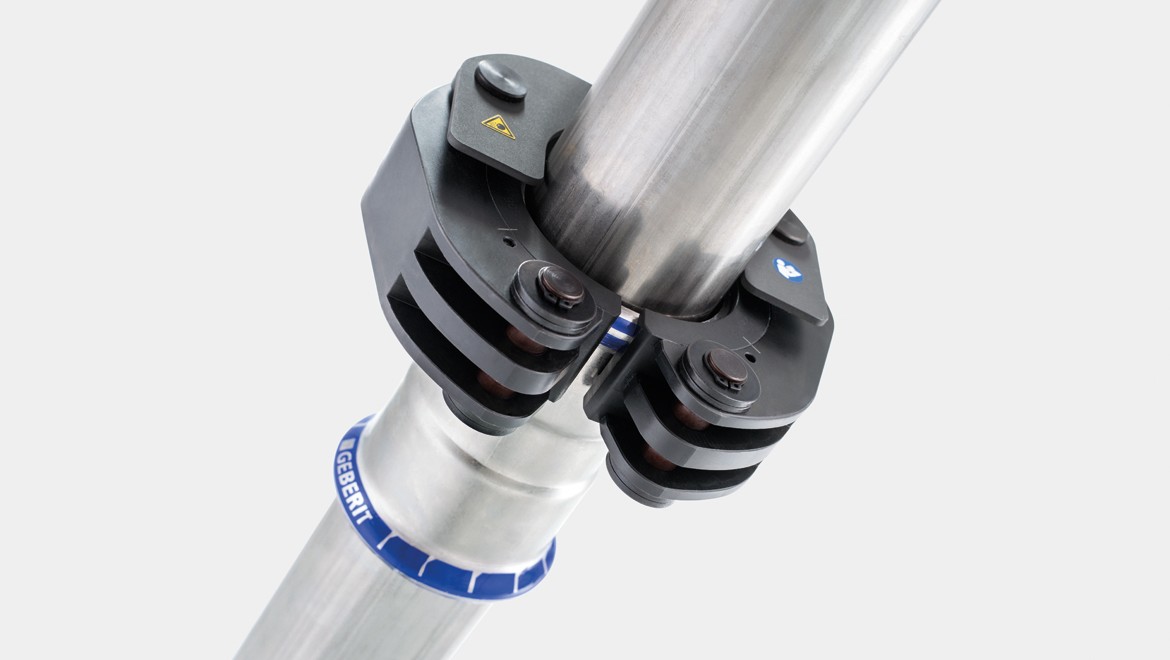

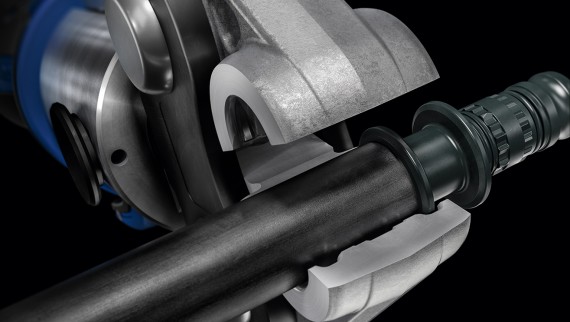

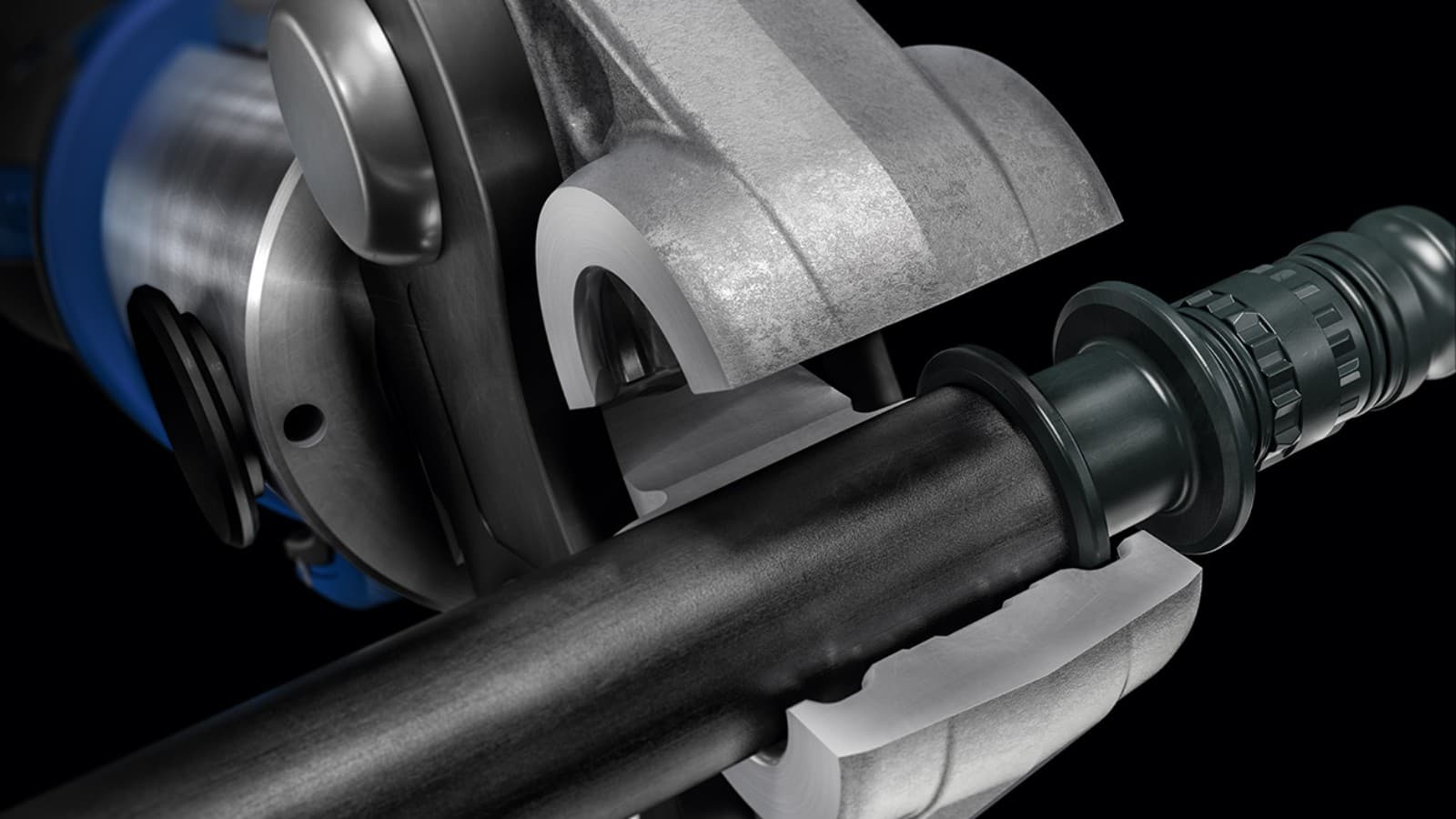

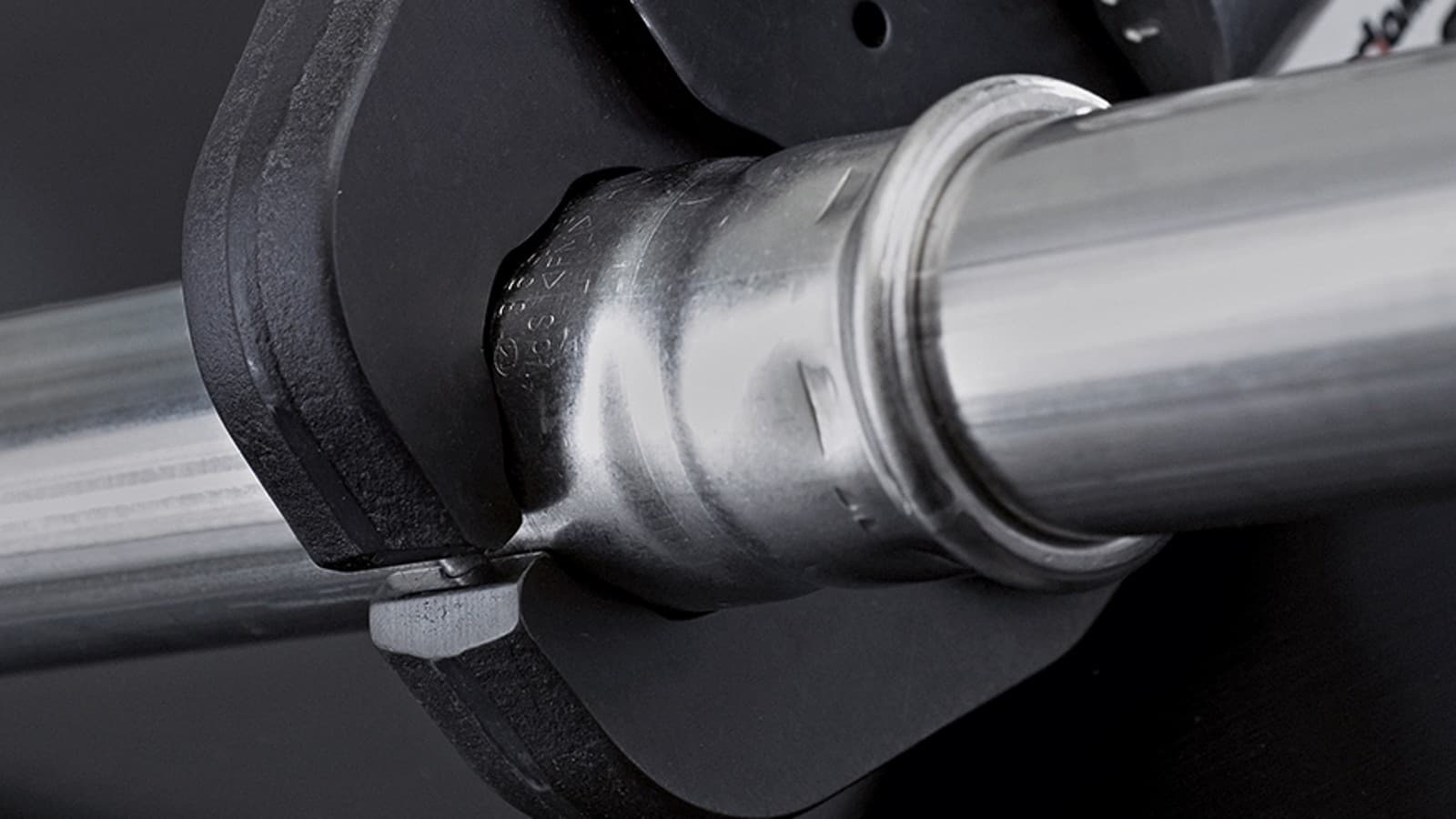

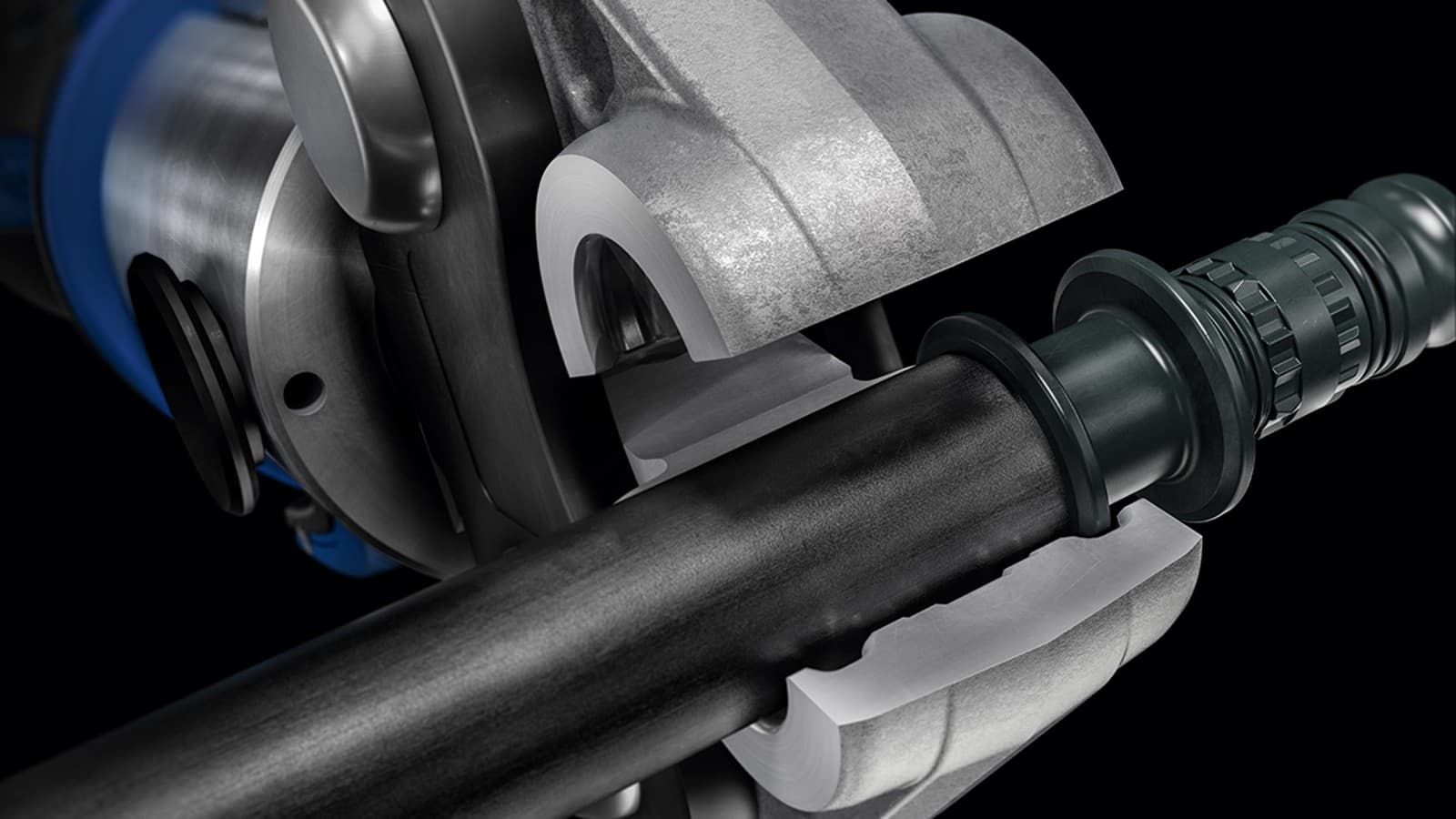

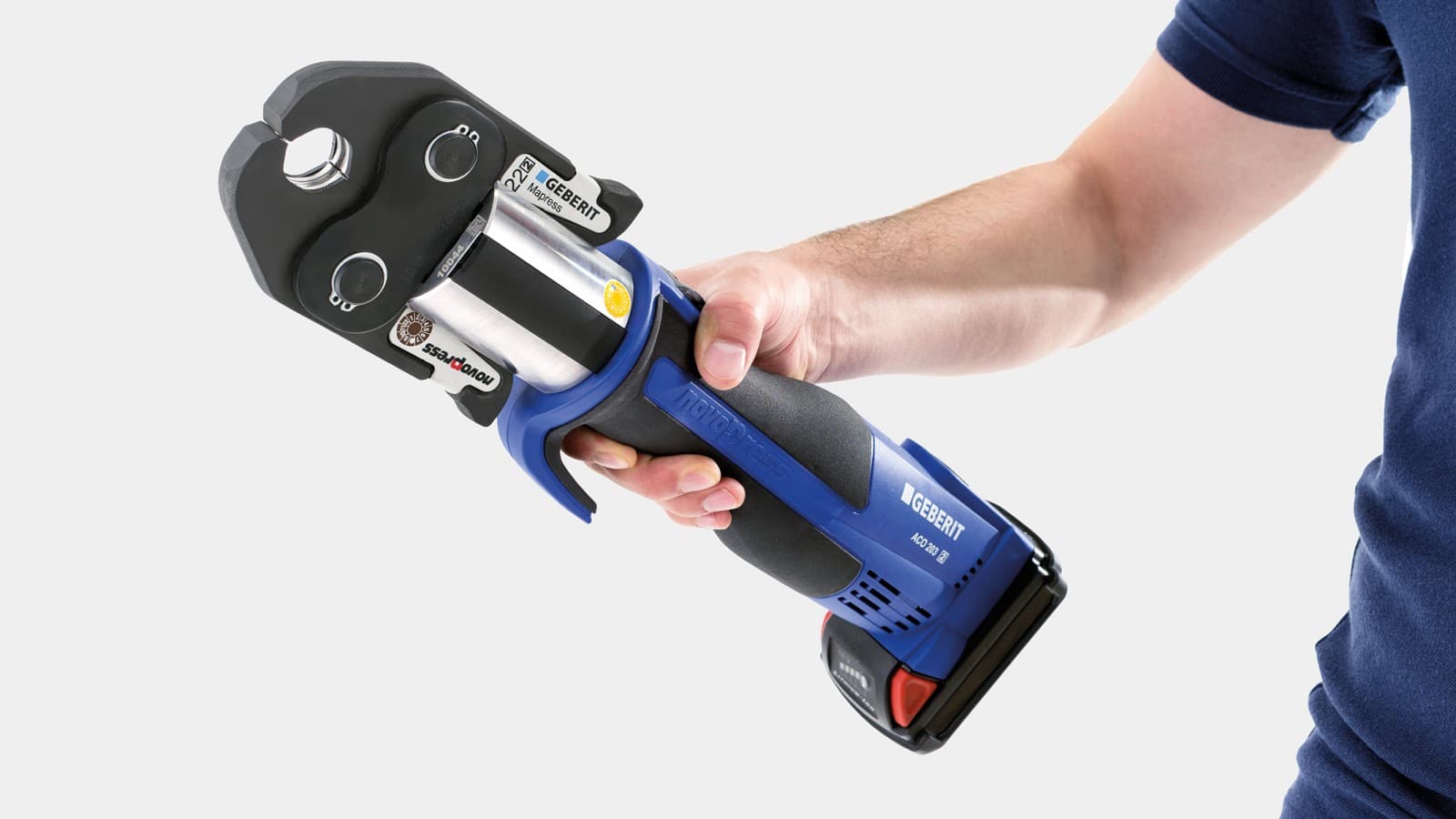

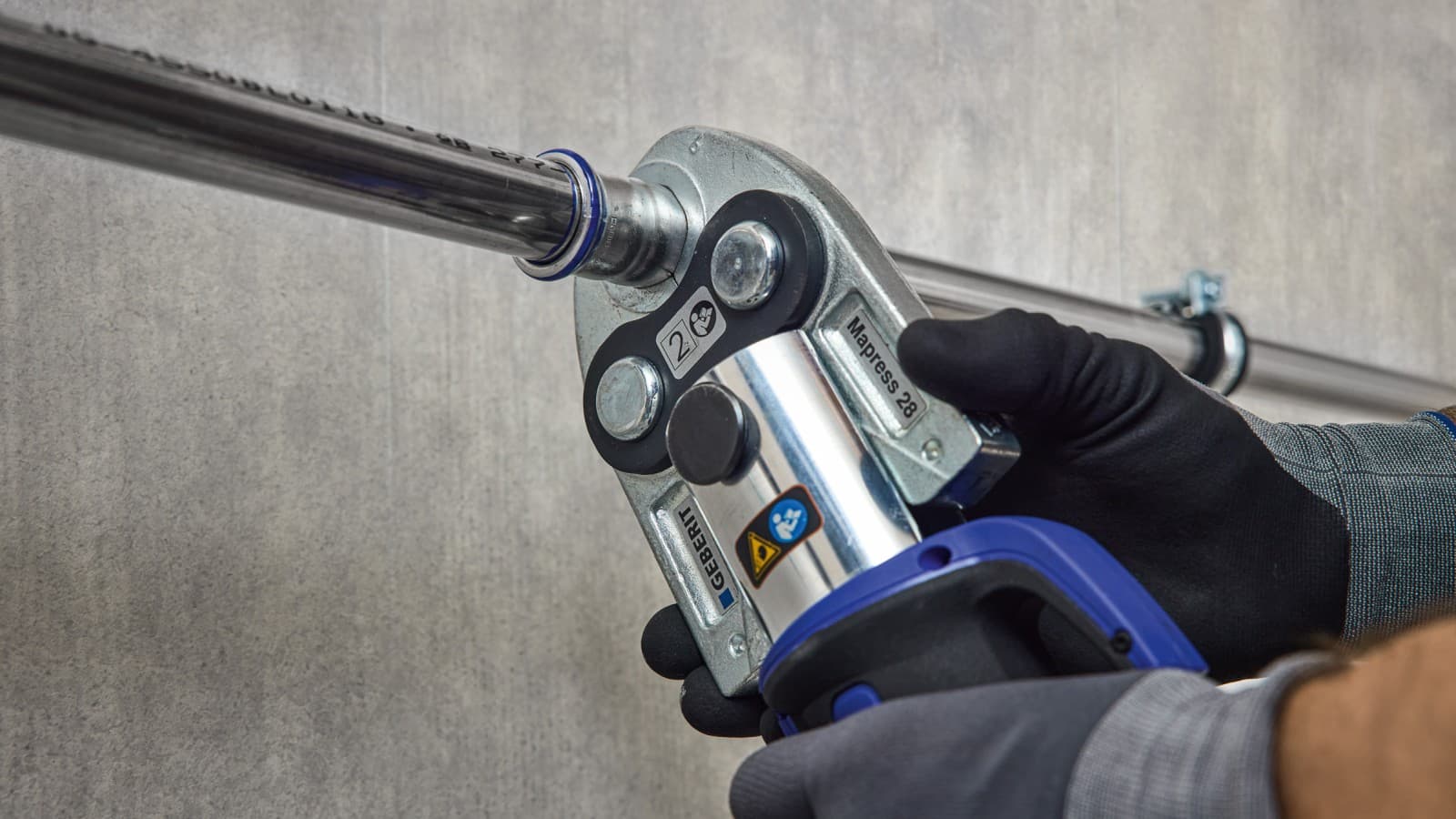

Geberit pressing jaws

The new generation of Geberit pressing jaws:

Service-free throughout the entire service life

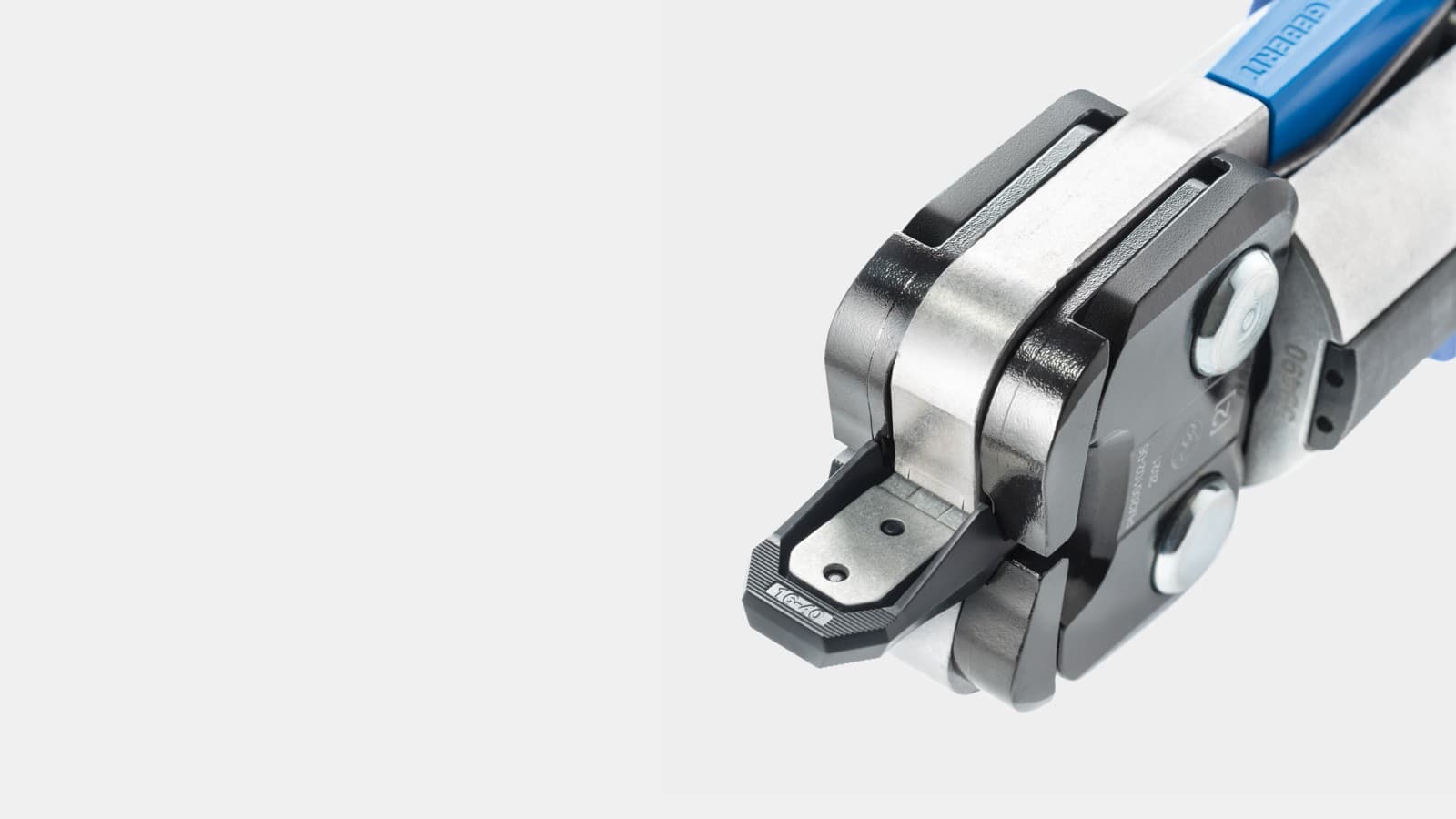

Can be tested with the Geberit PowerTest
Available for Geberit Mepla and Geberit Mapress [1] and [2]

The Geberit pressing jaws:

High-quality
Durable
For dimensions up to 35 mm for metal pipes or up to 50 mm for multilayer pipes
For compatibility classes [1], [2] and [3]
Available for Geberit Mepla [1] and Geberit Mapress [1], [2] and [3]
Geberit pressing collars are used for larger dimensions

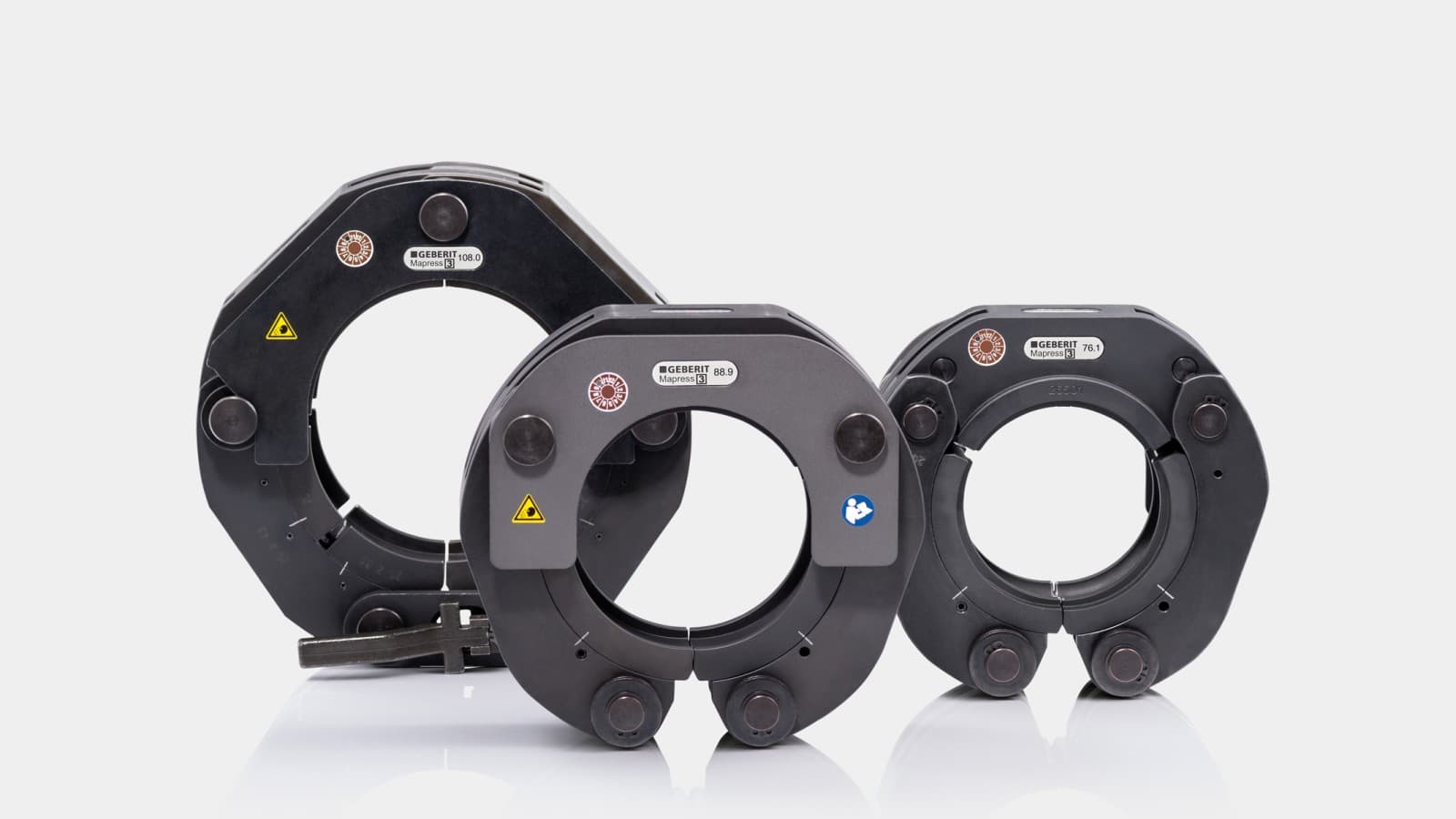

Geberit pressing collars

Suitable for Geberit Mepla and Geberit Mapress
Small, lightweight and robust

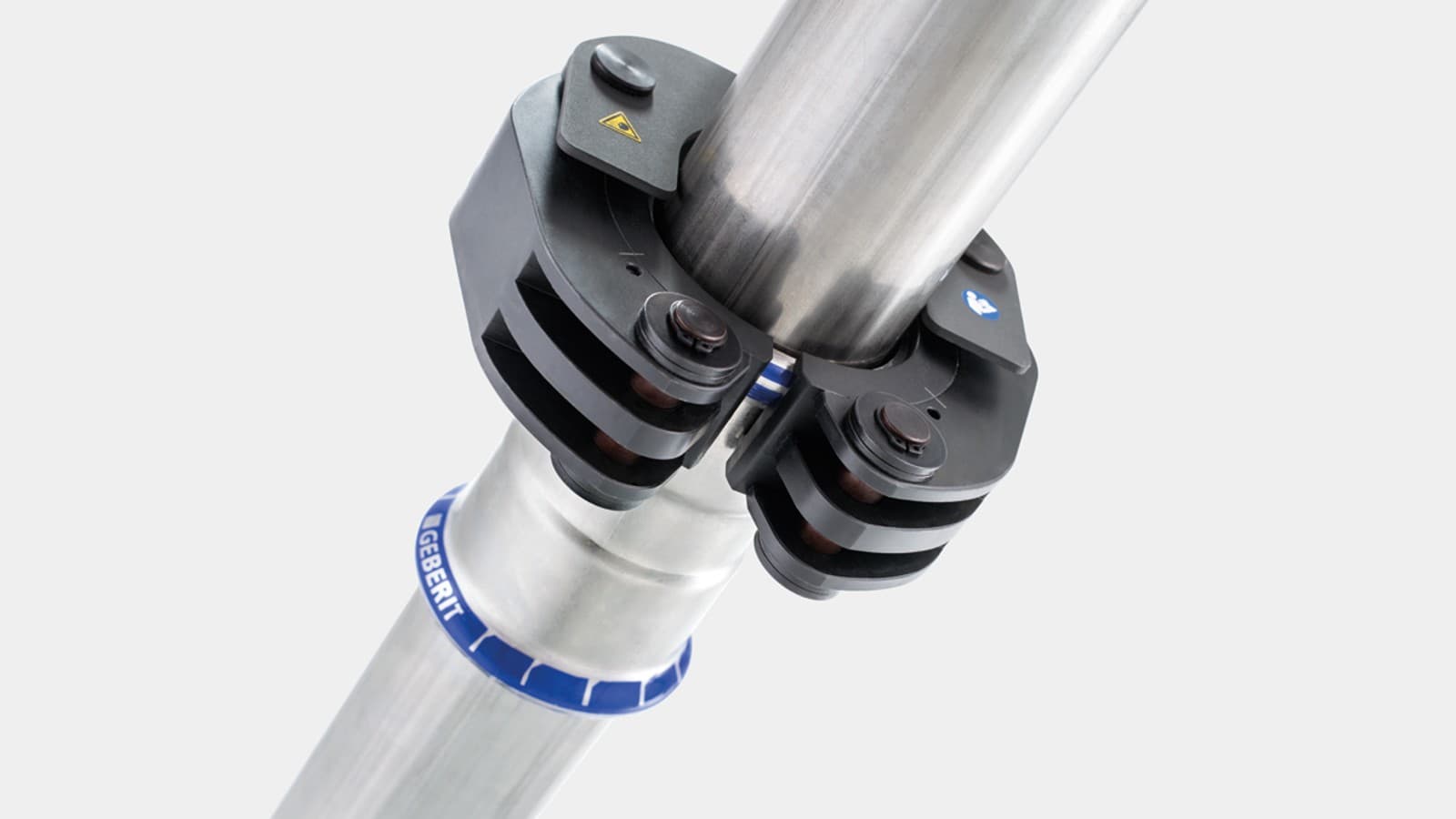

Easy handling with integrated snap mechanism which holds the Geberit pressing collar on the fitting
For dimensions from 35 mm for metal pipes or from 63 mm for multilayer pipes

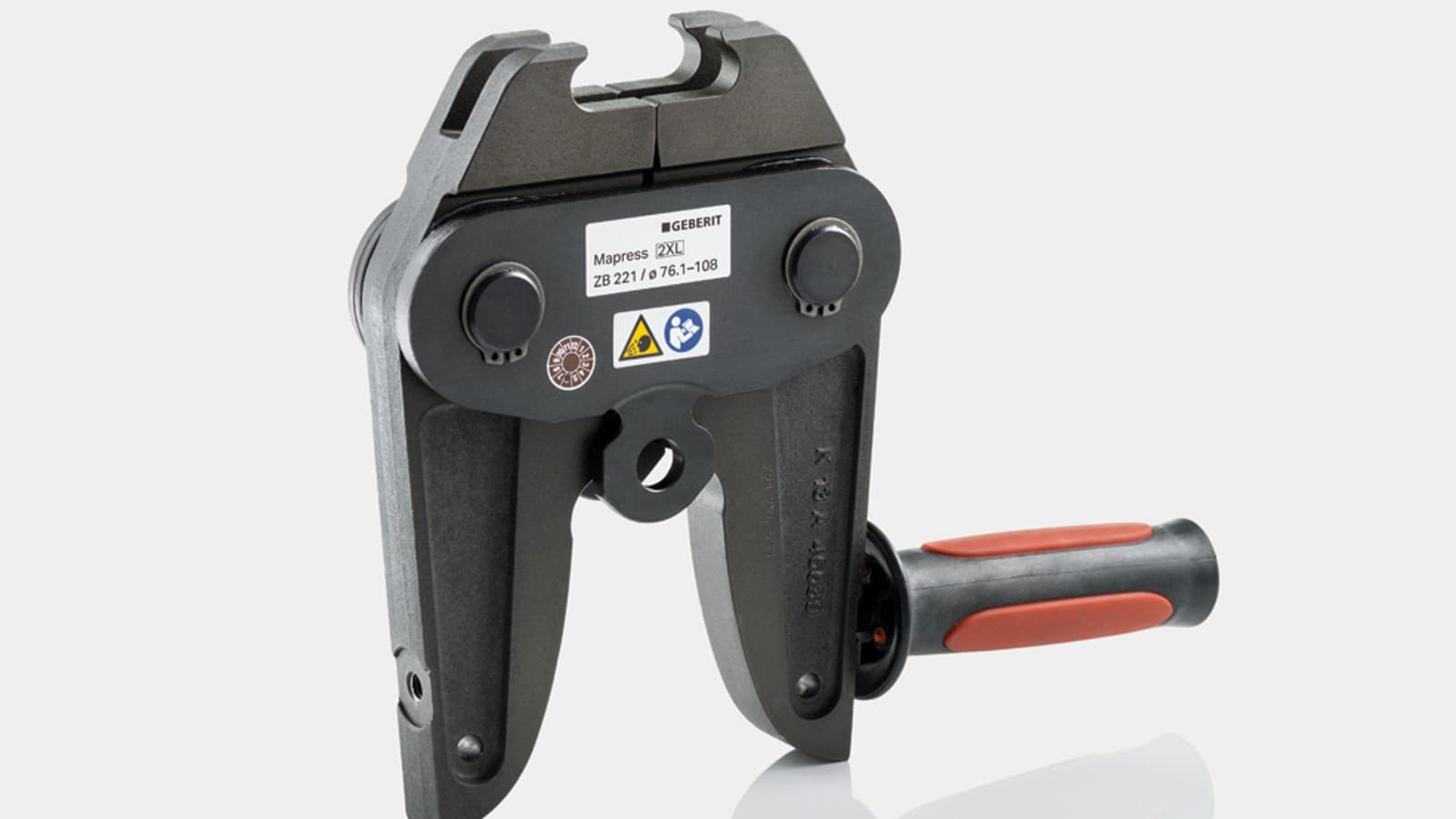

Geberit adapter jaws for use with the Geberit pressing collars

Adapter jaw	Dimensions	System
ZB203	[2]	63, 75 35, 42, 54, 66.7	Geberit Mepla Geberit Mapress
ZB221	[2XL]	76.1, 88.9, 108 (1)	Geberit Mapress
ZB222	[2XL]	108 (2)	Geberit Mapress
ZB303	[3]	35, 42, 54	Geberit Mapress
ZB323	[3]	76.1, 88.9, 108 (1)	Geberit Mapress
ZB324	[3]	108 (2)	Geberit Mapress

Legend: [n] compatibility; (1) preliminary pressing; (2) final press

Links

Geberit Mepla
Geberit Mapress Stainless Steel
Geberit ProPlanner

New pressing tools and rechargeable batteries

New Geberit pressing tools ACO 103plus, ACO 203plus and ACO 203XLplus with Bluetooth®

New rechargeable batteries with 5 Ah for the Geberit pressing tools ACO 203Plus and ACO 203XL for three more pressings up to a dimension of d108 in comparison to rechargeable batteries with 1.8 Ah.

The maintenance-free pressing jaws are available from 2018 for all Geberit pressing systems in supply piping systems with compatibilities [1] and [2].
